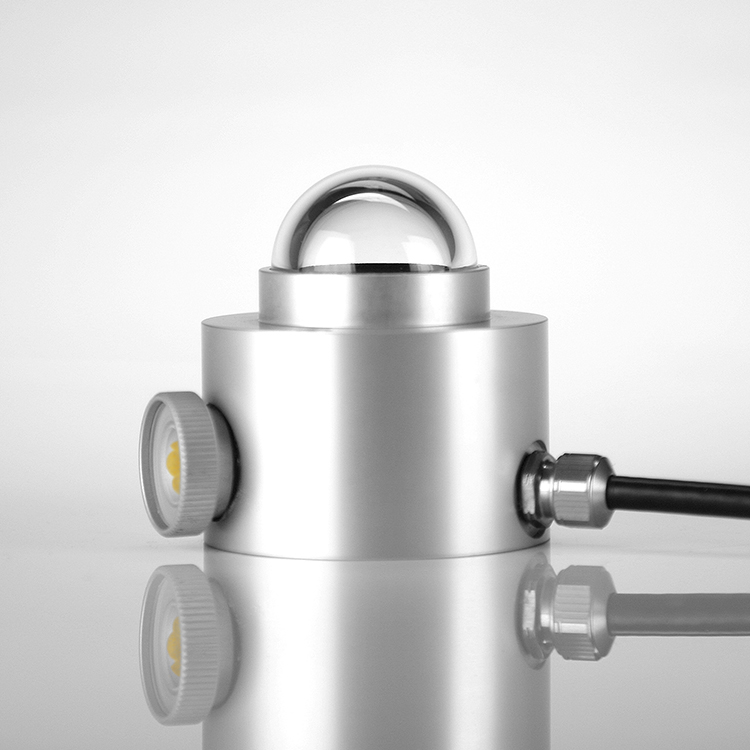

Pyranometer CM 4
The CM 4 High Temperature Pyranometer is a radiometer specially designed for measuring solar or artificial light irradiance under the most extreme temperature conditions.
The Kipp & Zonen CM 4 High Temperature Pyranometer is a radiometer specially designed for measuring solar or artificial light irradiance under the most extreme temperature conditions.

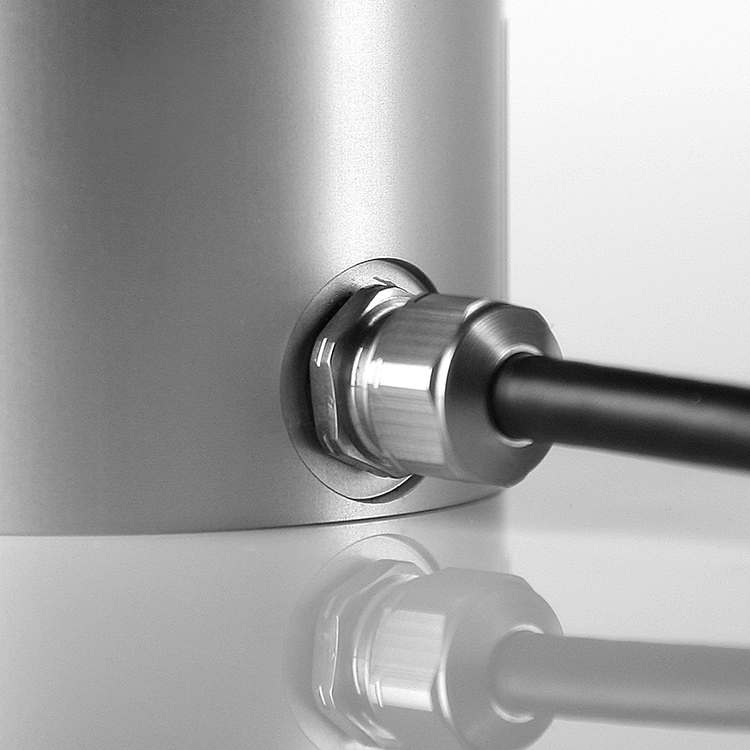

With an operating temperature range of -40 ºC to +150 ºC and measurement up to 4000 W/m² it is a unique product. All the radiometer components are specially selected for their ability to withstand these extremely high temperatures and irradiance. The CM 4 is supplied with a 10 m high temperature signal cable fitted to the instrument.
The CM 4 High Temperature Pyranometer has internal first-order temperature compensation, but it is also supplied with a built in Pt-100 temperature sensor to provide additional information on the measurement conditions. Monitoring the temperature during operations allows easy data correction afterwards for improved measurement accuracy.
CM 4 is supplied with a calibration table that gives the instrument sensitivity for a number of measurement temperature ranges and the maximum error in the measured irradiance values within each range.

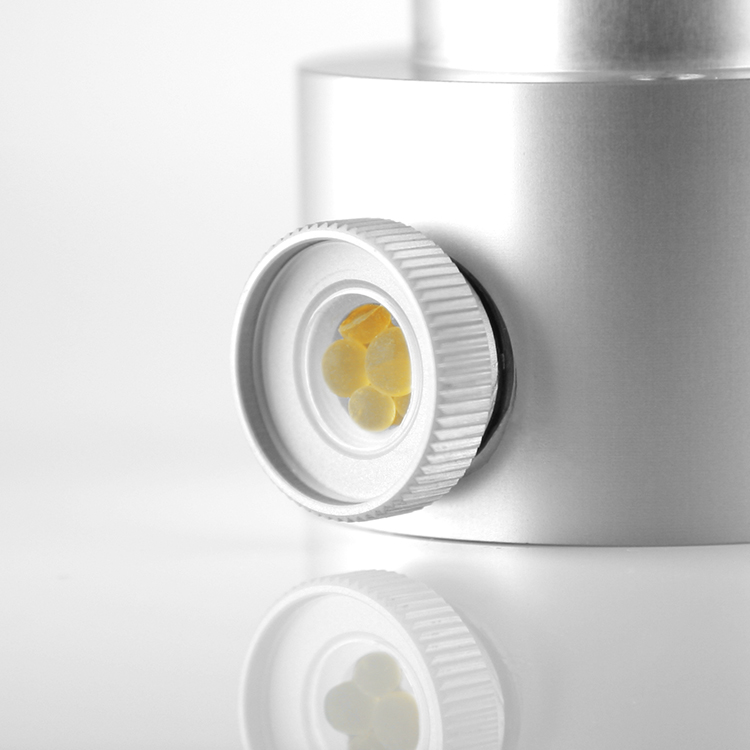

The screw-in drying cartridge is easy to remove and the replacement desiccant is supplied in convenient refill packets.
| Spectral range | 300 - 2800 nm |
| Sensitivity | 4 - 10 µV/W/m² |
| Response time | < 8 s |
| Zero offset A | < 4 W/m² |
| Zero offset B | < 15 W/m² |
| Directional error (up to 80° with 1000 W/m² beam) | < 20 W/m² |
| Temperature dependence of sensitivity (-10 ºC to +40 ºC) | < 3 % |
| Operational temperature range | -40 °C to +150 °C |
| Maximum solar irradiance | 4000 W/m² |
| Field of view | 180 ° |
| Title | Description | Filename |
|---|---|---|
| Brochure - pyranometer CM4 | KippZonen_Brochure_Pyranometer_CM4_V1201_A4.pdf | |
| CM 4 Pyranometer - Manual | KippZonen_Manual_CMP_CMA_series_Pyranometers_Albedometers.pdf |
