Anemometer uSonic-3 Class A
High performance 3D wind and turbulence sensor.
3 wind components x, y, z and acoustic temperature T.
Robust stainless steel construction (V4A).
Sensor characteristic optimized for boom mounting.
The Ultrasonic Anemometer uSonic-3 Class A represents the high precision solution of METEK’s ultrasonic sensor family. It has been designed to meet the scientific needs of small scale turbulence measurement or mast
instrumentation.
An embedded 2-axis inclination sensor (option) provides accurate tilt angles of
the sensor head. A 6 m cable connects the sensor head to the sensor
electronic.
Gallery

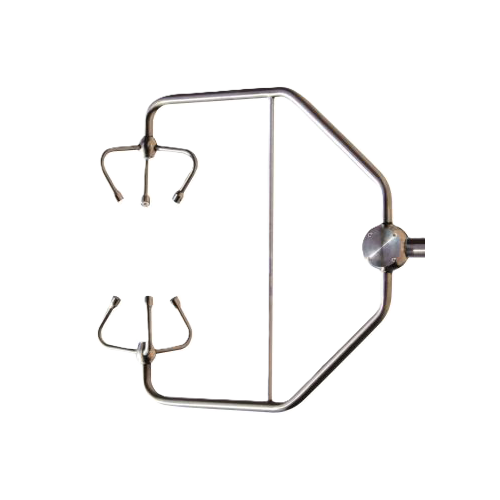

Anemometer uSonic-3 Class A
Technical data
| Ambient conditions | - 40 … + 60 °C, 5 … 100 % Rh |
| Average time / number | 1 … 3600 s / 1 ... 65365 samples |
| Sampling rate |
0.1 … 50 Hz
|
| Measurement ranges | 0 … 40 m/s, - 40 … + 70 °C |
|
Accuracy wind speed / wind direction
|
7.5 cm/s or 1.5 % / 1.5° (@ 5 m/s) |
| Resolution | 0.01 m/s, 0.1°,0.01 K |
| Output data set | x, y, z, T / vel, dir, z, T |
| Averaging method | scalar, vector |
| Output protocols | standard, checksum, NMEA |
| Data output | async, polling, time synchronized |
| Turbulence module (option) |
online calculation of means, variances, covariances,heat flux, momentum flux, Monin-Obukhov length, etc.
|
| Internal memory | 15300 standard / 2600 data sets turbulence calc. |
| Power supply |
9 ... 36 VDC / 3 W (5 W with options)
|
| Sensor head heating | 24 VDC / max. 100 W |
| Analog input (option) | 6 x analogue 16 bit, 2 x TTL counter, 2 x PT100 |
| Serial interface | RS422, RS485 (300 … 115200), ASCII |
